This tape winding machine is mainly used for wrapping tapes for wire harness used in automobiles, motorcycles and aviation industries, playing the role of marking, fixing and insulating.
Model: AT-305
Features
Operation video of the wire harness taping machine
Specifications
Model: AT-305
Features
-
Compatible with different types of tape materials without release paper, such as cloth tape, PVC tape, etc.
-
Keep it flat and free of wrinkles, which can ensure that the winding of the cloth tape is overlapped with the previous circle by 1/2
-

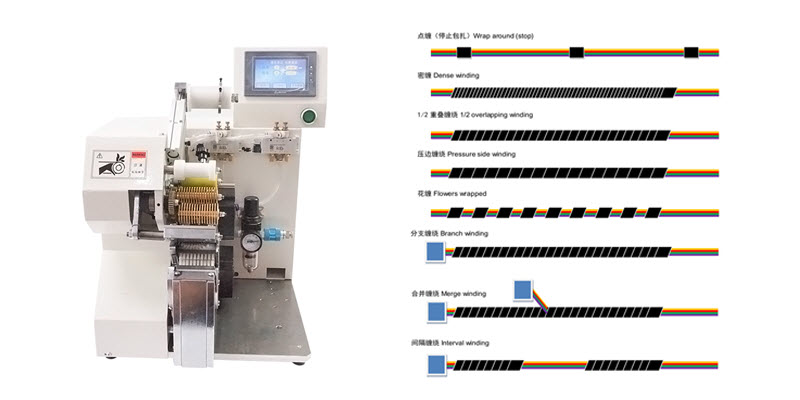

Switch between different winding modes: point winding at the same position, and spiral winding at different positions
-
Semi-automatic winding
-
Available to custom lap and speed settings and has the output display
-
Blades can be quickly replaced
Operation video of the wire harness taping machine
Specifications
| Model | AT-305 |
| Tape width | 15-45mm |
| Taping diameter | 0.1-40mm |
| Speed | 0-600mm/second |
| Power | 220/110(V) |
| Weight | 44kg |
| Package size | 500*360*360mm |
