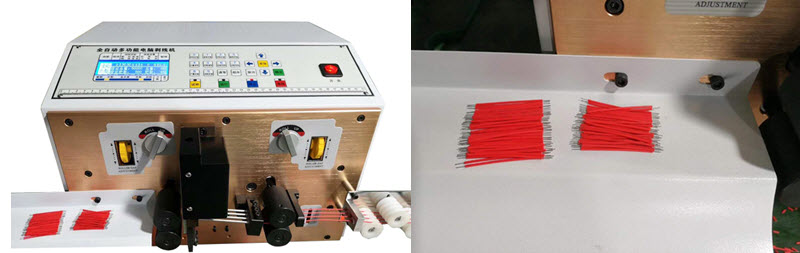

This fully automatic multiple wire cutting and stripping machine is able to process 4 wires simultaneously, thus its working efficiency is 4 times than ordinary models.
Features
Learn more about the multiple wire cutting stripping machine
Features
-
Main features: fully automatic wire cutting, full stripping and half stripping
-
The machine is able to process 4 wires simultaneously, thus its working efficiency is 4 times than ordinary models.
-
Applicable wires: electronic wires, silicone wires, Teflon wires, isolation wires, fiberglass wires, etc.
Send email to sales@yuanhanequip.com for a quotation.
Specifications
| Model | YH-BSX |
| Power supply | AC220V, 50Hz/60Hz (Special voltage can be customized) |
| Operation mode | button+192*64 dot matrix screen |
| Applicable wires | 0.1-2.5mm2 |
| Cutting length | 0.1-99999.9mm |
| Stripping length | Head: 0-30mm; Tail：0-30mm |
| Cutting tolerance | ±(0.2+0.033*L)mm (L=length) |
| Maximum diameter of the conduit | ⌀ 4mm |
| Blade material | tungsten high speed steel |
Operation video of the multiple wire cutting stripping machine
Learn more about the multiple wire cutting stripping machine
