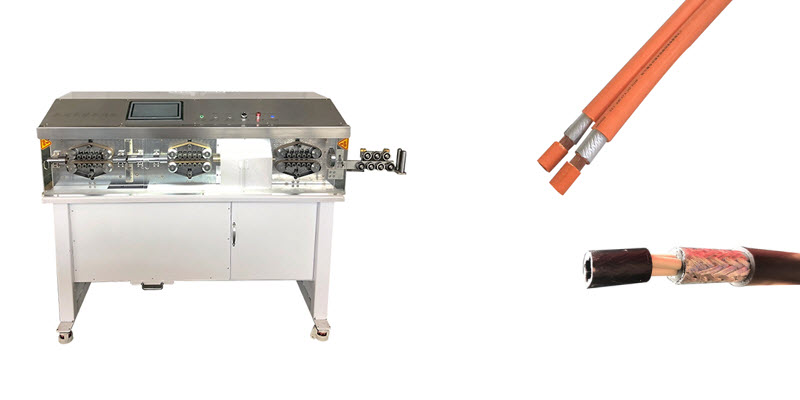

Big Cable Cut and Strip Machine with Rotary Knife

This large gauge cable cutting and stripping machine is mainly used for processing of high-energy power lines for new energy motors, charging stations, electronic control and BMC. It can easily process thick cables up to 120 Sq mm.


Features

• This machine is a new type of cable processing equipment controlled by microcomputer. It is mainly used for the processing of high-energy power lines for new energy motors, charging stations, electronic control and BMC. The introduction of this model completely solves the processing problem of large square wire and multi-core sheathed cable
• Automatically cut and strip the insulation at both ends, and at the same time carry out multi-layer stripping processing
• Industrial-grade control chip with high-precision servo drive enables the machine to run stably at high speed
• PLC control system, touch screen operation mode
• Automatic adjustment of wire diameter, no need to change tools for different specifications of cable
• Belt drive, no indentation
• Easy to process cables up to 120 mm², and strong power is the guarantee of work efficiency

Processing Capabilities

• Full strip

• Half strip

• Cutting

• Middle cutting and stripping

• Precision cut


Send email to sales@yuanhanequip.com for a quotation.


Operation video of the big cable cut and strip machine



Technical Data

Model	YH -8120X (rotary knife)
Display method	10-inch true color touch screen
Wire type	PVC cables, sheathed wires, etc.
Stripping range	10-120mm2
Cutting length	150mm-99999.99mm
Cutting tolerance	Within 0.002*L (mm) (L=cutting length)
Stripping length	Front stripping: 1-120mm (customizable to peel more than 1000mm) Tail stripping: 1- 270mm
Maximum diameter of the catheter	Φ7～30mm
Tool material	High quality imported high speed steel
Productivity	100-700pcs/h (depending on the length and size of the wire)
Power supply	220V 50HZ
Power	4KW
Drive mode	48-wheel drive, full servo motor
Wire feeding method	Belt feeding line, no embossing on the cable without scratches
Remarks	Sample wire test is required
